Stream Temperature and Steelhead Survival

stobias
View all records in the stressor response library
Species Common Name
Steelhead Trout
Latin Name (Genus species)
Oncorhynchus mykiss
Stressor Name
Temperature
Specific Stressor Metric
Stream Temperature
Stressor Units
°C
Vital Rate (Process)
Survivorship

Life Stage

Detailed SR Function Description

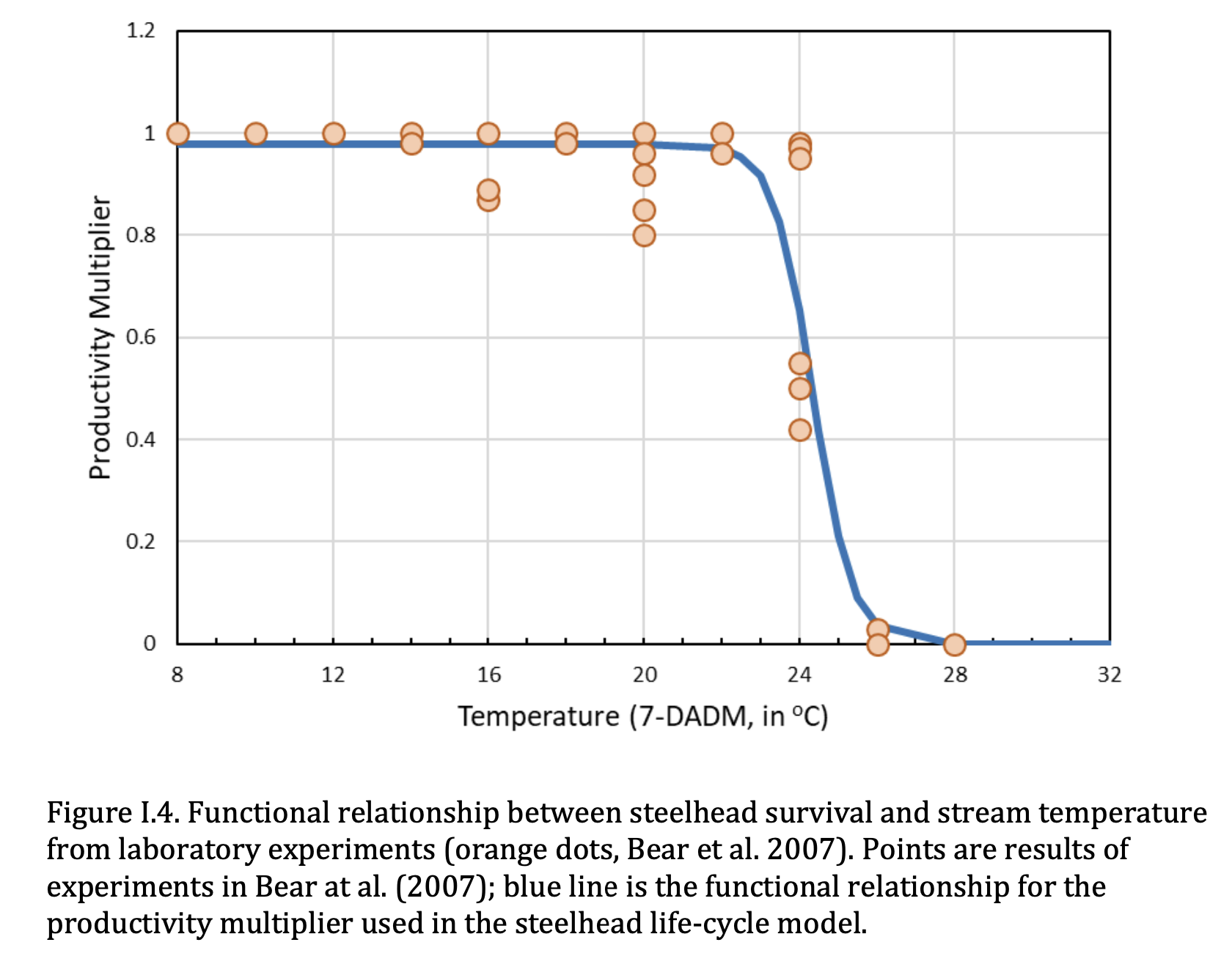

Functional relationship between steelhead survival and stream temperature from laboratory experiments (orange dots, Bear et al. 2007). Points are results of experiments in Bear at al. (2007); blue line is the functional relationship for the productivity multiplier used in the steelhead life-cycle model.
Note: the equation in the Beechie et al. paper has an error in the equation, it is 1+e, not 1-e.
Function Derivation
expert opinion
Function Type
continuous
Stressor Scale
linear
Citation(s)
Beechie, T. J., C. Nicol, C. Fogel, J. Jorgensen, J. Thompson, G. Seixas, J. Chamberlin, J. Hall, B. Timpane-Padgham, P. Kiffney, S. Kubo, and J. Keaton. 2021. Modeling Effects of Habitat Change and Restoration Alternatives on Salmon in the Chehalis River Basin Using a Salmonid Life-Cycle Model. U.S. Department of Commerce, NOAA Contract Report NMFS-NWFSC-CR-2021-01.
Citation Link
https://repository.library.noaa.gov/view/noaa/29486
File Upload
Excel file showing application of formula and conversion to a value from 0-1 (1.55 KB)
Images
Figure I.4 taken from Beechie et al. paper
Stressor Response csv data
sr_curve (18).csv (531 bytes)
Stressor (X) Mean System Capacity (%) SD low.limit up.limit
8 0.9788 0 0 0
9 0.9788 0 0 0
10 0.9788 0 0 0
11 0.9788 0 0 0
12 0.9788 0 0 0
13 0.9788 0 0 0
14 0.978799999 0 0 0
15 0.978799992 0 0 0
16 0.978799939 0 0 0
17 0.978799557 0 0 0
18 0.978796768 0 0 0
19 0.978776433 0 0 0
20 0.978628157 0 0 0
21 0.97754817 0 0 0
22 0.969743551 0 0 0
23 0.916387164 0 0 0
24 0.65397476 0 0 0
25 0.211756729 0 0 0
26 0.035701031 0 0 0
27 0.005054464 0 0 0
28 0.000696179 0 0 0
29 9.55198E-05 0 0 0
30 1.30989E-05 0 0 0

Stressor Response Chart
